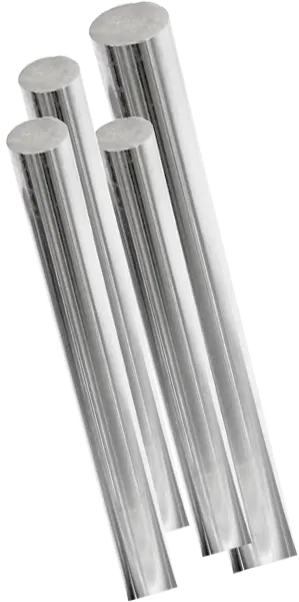

PSQ Bar ( Pump Shaft Quality Bars )

SS PSQ Bar, Stainless Steel PSQ Bar Manufacturers India - JAY JAGDAMBA LIMITED

Stainless steel precision bars are manufactured with tight dimensional tolerances, a smooth surface finish, and specific mechanical properties. They are used in applications requiring accuracy, strength, and corrosion resistance, such as in the automotive, aerospace, medical, and engineering industries.

Benefits:

  • Manufactured with advanced grinding techniques for high precision.
  • Available in various diameters and heat-treated conditions.

Applications:

  • Aerospace, automotive, and heavy engineering.
  • Precision machining and component manufacturing.
Condition
:
Cold drawn, centreless ground and polished Peeled, centreless ground and polished
Diameter (size)
:
6 mm to 25 mm 16mm to 60 mm
Surface finish
:
Up to 20 RMS max Up to 20 RMS max
Up to Ra 0.5 mm max Up to Ra 0.5 mm max
Diameter tolerance
:
h7, h8, f7, f8, g6 H7, h8, f7, f8, g6
Straightness
:

Up to 0.5 mm per meter (TIR 0.0015 inch per feet)

Out of roundness
:

Half of diameter tolerance

Length
:
3 to 7 meter (12 to 22 feet) 3 to 7 meter (12 to 22 feet)
Length tolerance
:

-0/+50mm or +20 mm or 10mm

-0/+2" or 1" or ½"

Heat treatment
:

Solution annealed, annealed quenched and tempered

FAQs:

1. What are the available diameters?

From 6mm to 60mm.

2. Are they straightened for accuracy?

Yes, they undergo straightening to ensure minimal deviation.
