SS Angle Bar, Stainless Steel Angle Bar Manufacturers India - JAY JAGDAMBA LIMITED

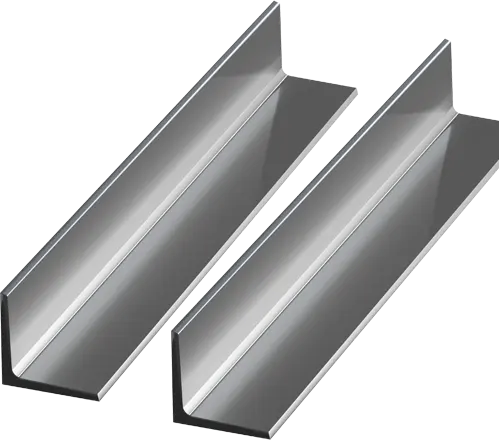

Stainless steel HRAP (Hot Rolled, Annealed, and Pickled) equal angles are structural components manufactured through hot rolling, followed by annealing to reduce internal stresses and pickling to remove surface scale. This process results in a clean, corrosion-resistant finish. These angles are used in industrial and construction applications for load-bearing structures, frameworks, and support systems.

Benefits:

  • High Strength & Durability: Manufactured using high-quality stainless steel for excellent load-bearing capacity.
  • Corrosion Resistance: The hot-rolled, annealed, and pickled (HRAP) process enhances surface quality and longevity.
  • Precision & Uniformity: Laser-marked and dimensionally accurate for easy installation.
  • Contaminant-Free: Free from radioactive elements, mercury, and lead contamination.

Applications:

  • Construction & Infrastructure: Used in frameworks, bracing, and load-bearing structures.
  • Architectural & Industrial Use: Ideal for bridges, warehouses, and engineering projects.
  • Fabrication & Manufacturing: Suitable for structural reinforcement and custom fabrication work.
Size
Size (mm) Thickness (mm)
20 3,4,5,6
20 3,4,5,6
25 3,4,5,6
30 3,4,5,6
35 3,4,5,6
38 3,4,5,6
40 3,4,5,6, 8
45 3,4,5,6
50 3,4,5,6, 8, 9, 10
60 5,6,8,9,10
65 5,6,8,9,10
70 6,7,8,9,10
75 6,8,9,10,12
80 6,8,10,12
90 6,8,10,12
100 6,8,10,12
Supply Condition
  • Length up to 7 meters
  • Hot rolled annealed picked (HRAP), Short blasted, polished
  • Both ends are color coded as per customer specific requirement
  • Specifications as per EN, DIN, JIS, ASTM, BS, ASME, AISI, etc
  • Identified by handheld spectrometer
  • Laser printing as per grade, size and heat number
  • Free from radioactive elements and mercury, lead contamination

FAQs:

1. What are the available sizes for HRAP Equal Angles?

We offer a range of sizes and thicknesses to suit different structural requirements. Custom dimensions are available upon request.

2. Are these angles suitable for outdoor applications?

Yes, their corrosion-resistant properties make them ideal for outdoor and marine environments.

3. Do the HRAP Equal Angles come with certification

Yes, all our products meet international quality and safety standards and come with relevant certifications.
