SS Flat Bar, Stainless Steel Flat Bar Manufacturers India - JAY JAGDAMBA LIMITED

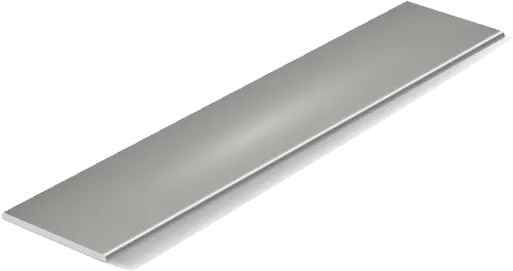

Stainless steel flat bars are versatile, solid metal strips with a rectangular cross-section, known for their strength, corrosion resistance, and ease of fabrication. They are widely used across industries such as construction, architecture, automotive, shipbuilding, and heavy engineering among others.

Size
:
Size(mm) THICKNESS (mm)
25 4, 5, 6, 8, 10, 12, 15, 16
30 4, 5, 6, 8, 10, 12, 15, 16, 20
35 4, 5, 6, 8, 10, 12, 15, 16, 20
40 4, 5, 6, 8, 10, 12, 15, 16, 20, 25
45 4, 5, 6, 8, 10, 12, 15, 16, 20, 25
50 4, 5, 6, 8, 10, 12, 15, 16, 20, 25
60 5, 6, 8, 10, 12, 15, 16, 20, 25, 30, 35
63 5, 6, 8, 10, 12, 15, 16, 20, 25, 30, 35
65 5, 6, 8, 10, 12, 15, 16, 20, 25, 30, 35
70 6, 7, 8, 10, 12, 15, 16, 20, 25, 30, 35
80 6, 7, 8, 10, 12, 15, 16, 20, 25, 30, 35, 40
90 8, 10, 12, 15, 16, 20, 25, 30, 35, 40
100 8, 10, 12, 15, 16, 20, 25, 30
Supply Condition
  • Length up to 7 meters
  • Hot rolled annealed picked (HRAP), Short blasted, polished
  • Both ends are color coded as per customer specific requirement
  • Specifications as per EN, DIN, JIS, ASTM, BS, ASME, AISI, etc
  • Identified by handheld spectrometer
  • Laser printing as per grade, size and heat number
  • Free from radioactive elements and mercury, lead contamination
